FWX 250Vac/dc

FWX 250V North American High Speed Fuse

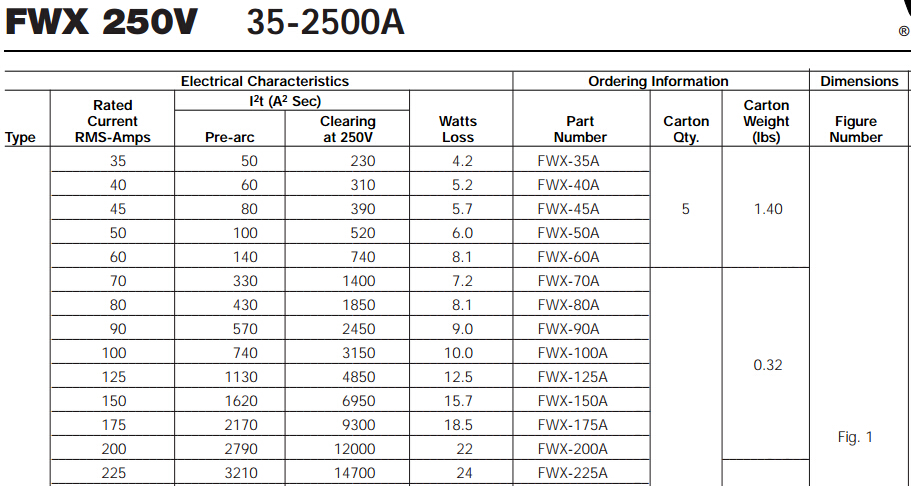

Catalog Number	FWX-_
Dimensions	See Resources Tab
Volts 电压	250Vac/dc
Amps 电流	35-2500A
IR 分的能力	200kA RMS Sym.
Agency Information	CE, UL Recognized & CSA Component Acceptance on 35-800A fuses (20kA IR @250Vdc)
Typical Applications	• DC common bus • DC drives • Power converters/rectifiers • Reduced voltage starters

U.L. Recognition on 35 through 800 amperes only. 1 kg = 2.2 lbs 1 lb = 0.45 kg

Interrupting rating 200kA RMS Symmetrical.
Watts loss provided at rated current.
(250 Vdc/Interrupting rating 20kA) U.L. Recognition on 35 through 800 amperes only.
